ZLP630 suspended platform

Rigid "ZLP630" Temporary Suspended Platforms perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc.

  • ZLP
  • Rigid
  • 8428909090



ZLP630 platform is intended for temporary applications for lifting people and their working equipment - at unlimited heights.

The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc.

The complete system consists of the working platform equipped with two electric LTD hoists and the support wheels, suspended by means of steel wire ropes from a suspension structure.


Safety systems

To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices:

QQ图片20160224141651 Service brake incorporated in the LTD hoist.
QQ图片20160224141651 Two fall arrest devices (Anti-tilt LSF safety lock) acting on the safety wire ropes.
QQ图片20160224141651 Overload sensor incorporated in the LTD hoists according to EN 1808. (Option)
QQ图片20160224141651 Two upper limit switches.
QQ图片20160224141651 No power descent in case of power failure.
QQ图片20160224141651 Emergency stop.
QQ图片20160224141651 Phase controller. (Option)


Electric Suspended Platforms for Lightweight Applications

Are you looking for a stable, reliable, and easy-to-use suspended platform for lightweight applications like painting, decorations, window cleaning, and much more? If yes, ZLP 630 suspended platform is what you are looking for. The system comprises a working platform fitted with a support wheel and two electric LTD hoists. The suspended platform is hanged by steel wire ropes and is one of the sturdiest you can use for lightweight applications at unlimited heights.

At Wuxi Rigid Machinery Co., Ltd., we specialize in building quality suspended scaffold equipment and lifting machines. ZLP 630 suspended platform is just one of the many, and we are proud to say that it has revolutionized how contractors and people handle applications like painting, window/wall cleaning, and refurbishing. The suspended access equipment can handle a 630kg load and is stable at any height. Buy the ZLP 630 suspended platform today, and you'll be sure to make your work easier.

Other ZLP Series Suspended Platforms for Lightweight Applications

Wuxi Rigid Machinery Co., Ltd. is the leading company when it comes to building suspended equipments. So we don't just have the ZLP 630 machine. We have other devices like the ZLP500 and ZLP250. These two products can handle lighter tasks with a much lower load rating. They are efficient, easy to use, and safe at unlimited heights. To get any ZLP series platforms, just view our products, pick the machine you want, and buy. Once you meet the shipping terms and conditions, we will ship it to your location, wherever you are.

Why Buy Our Lightweight Access Platforms?

• Durable and Reliable – When buying lifting or suspended platform equipment, you will want to keep durability in mind. The good news is that our electric suspended platform and other products are built to last. They are durable and will function efficiently for many years with minimal maintenance.

• Safe – Our light weight access platforms have safety devices and features like the emergency stop, phase controller, service brake, two fall arrest devices, and more to enhance safety.

• Affordable – Construction-suspended equipments can be costly. However, Wuxi Rigid Machinery Co., Ltd. ensures that our suspended platform systems are available at pocket-friendly prices. When you buy the access equipment from us, you will be saving not only with the initial cost but also in terms of maintenance.

• We Are in the Global Market – You don't have to worry whether our scaffold equipment and products are available in your country or not. Why? We export our products to Europe, USA and other parts of the world. You only need to purchase, and we will ship the machine to your location.


The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc.



The main para. Of ZLP630 suspended platform:

QQ图片20160224141651 Rated Load: 630kg
QQ图片20160224141651 Lifting Speed: 9m/min
QQ图片20160224141651 Voltage-3Phase: 380V/ (415V/220V)
QQ图片20160224141651 Frequency: 50Hz/60Hz
QQ图片20160224141651 Power: 1.5kw×2
QQ图片20160224141651 Hoist: LTD63
QQ图片20160224141651 Safety Lock: LSF308
QQ图片20160224141651 Dia. of Wire Rope: 4×31SW+FC-8.3mm
QQ图片20160224141651 Platform Size: (2×3)×0.76×1.45m
QQ图片20160224141651 Weight of Suspension Jibs: 340kg
QQ图片20160224141651 Weight of Lifting Part: Aluminum310kg/Steel 450kg
QQ图片20160224141651 Counter Weight: 900kg
QQ图片20160224141651 20’ GPQty of Package: 10

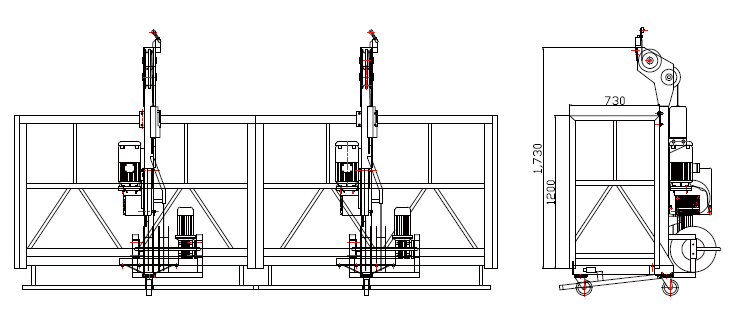

Platform Suspension

The different variants are to be distinguished by their suspension principles. Three different stirrups allow to choose the platform the best to your requirements (type of work, type of building, maximum loads, number of persons).

End stirrup:
Fitted at the ends of the platform.
The most economical and lightweight version, although showing extraordinary performances.


"Frame" stirrup:
Slipped over the platform like a "frame".
The ends of the platform and therefor the building corners are clear and can be easily accessed, exchangeable with the upper part of the end stirrup.


"L" stirrup:
Placed at the rear of the platform behind the workers.
The working surface is completely clear and the whole façade can be easily accessed.


Anchoring Options

The platform applies to all types of suspension which are manufactured according to the current standards and recommendations. The EN 1808 stipulates a safety factor of 3 for anchor points and suspension structures. Rigid offers a complete range of suspension structures which can be fitted on different types of roofs: the suspension jibs or the parapet clamp.


In most applications, it is possible to use a system of mobile suspension jibs in the roof for the attachment of temporary suspended platforms.

Double-Deck Platform

The ZLP platform can be easily transformed in a double-deck platform using especially designed attachment rods.
