The newly designed traction hoist from china rigid can meet the demands of "scaffoldless installation process" for the high-speed elevator of modern super high-rise building.
Designed and manufactured according to EN1808:2015 and certified by TUV CE
Inner overload limiter to make the equipment more secure and reliable.
Maximum lifting load 2000KGS, lifting speed of 6 or 12 meters optional.
Optional upper limit switch, integrated electrical control box and other supporting construction accessories to meet the special needs of customers.
The overspeed fall arrester is automatically tripped when the lowering speed of the wire rope exceeds 30m/min (0.5m/s). The integrated clamping jaw mechanism made of hardened steel stops the lowering of the wire rope within a few centimeters.

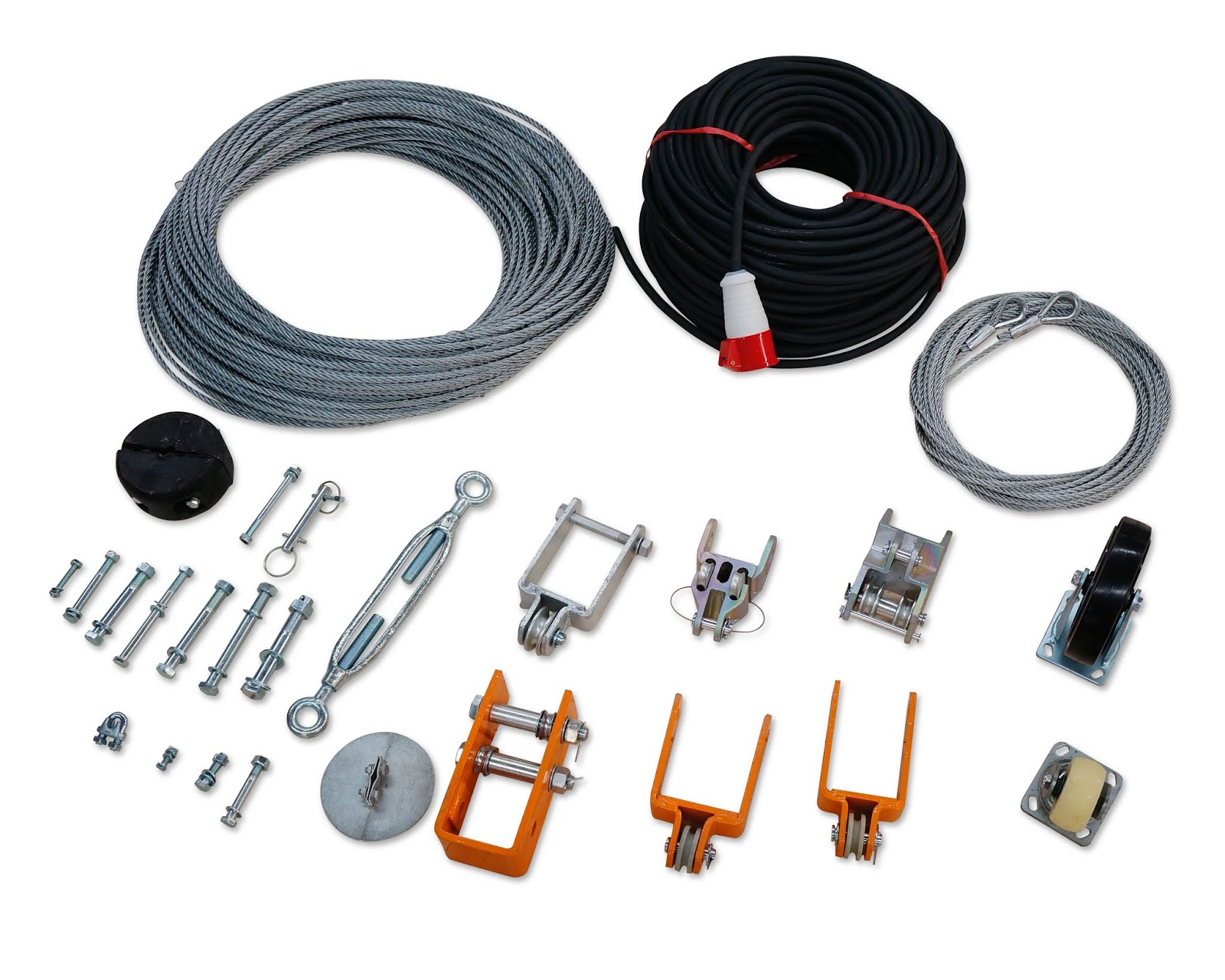

Steel Wire Rope & cable
Wire rope, Cable & Accessories for Use with Rigid Lifting Machines
Hot dipped galvanized steel wire ropes
Application: for temporary cradles platform.
Reinforce Wire Rope
Rope Clamp Y-10
Rope Guide Device
Screw & Bolts
Upper limit Stopper
Electrical Control Box
The electric control box of the suspended platform is controlled eagerly by the electrical box, highlighting in helpful activity, wellbeing and unwavering quality.
IP55 waterproof Design
First class electrical components
Professional finish of wiring layout
Individually marked wires for easy identification
Low control voltage
