ZLP1000 suspended platform

ZLP500 Suspended Cradle

Description

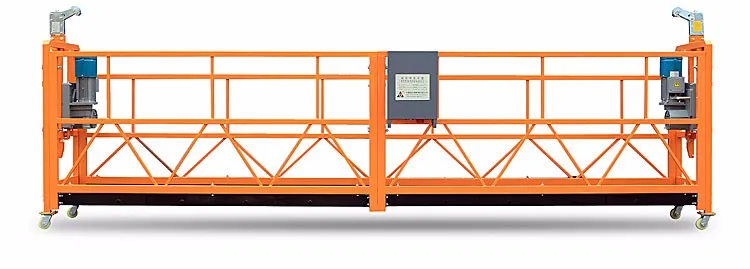

	ZLP500 cradle is for temporary applications for lifting people and their working equipment - at unlimited heights. The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc. The complete system consists of the working platform equipped with two electric LTD hoists and the support wheels, suspended by means of steel wire ropes from a suspension structure. Safety systems To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices: 1. Service brake incorporated in the LTD hoist. 2. Two fall arrest devices acting on the safety wire ropes. 3. Two upper limit switches. 4. No power descent in case of power failure. 5. Emergency stop. 6. Phase controller. (Option) 7. Overload sensor incorporated in the LTD hoists according to EN 1808. (Option)

The parameters of ZLP series suspended platform
Tpye	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Load	500kg	630kg	800kg	1000kg
Lifting speed	9m/min	9m/min	9m/min	8.7m/min
Voltage-3phase	380V(415V/220V)	380V(415V/220V)	380V(415V/220V)	380V(415V/220V)
Frequency	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz
Power	1.1×2	1.5×2	1.8×2	2.0×2
Hoist	LTD50	LTD63	LTD80	LTD100
Safety lock	LSF308	LSF308	LSF309	LSF310
Dia.of Wire Rope	4×31SW+FC-8.3mm	4×31SW+FC-8.3mm	4×31SW+FC-9.1mm	4×31SW+FC-10.2mm
Plateform Size (L×W×H)	(2.5×2)×0.76×1.45M	(2×3)×0.76×1.45M	(2.5×3)×0.76×1.45M	(2.5×3)×0.76×1.45M
Weight of Suspended Jibs	340kg	340kg	340kg	340kg
Weight of Lifting Part	410kg(Steel) 290kg(Aluminum)	450kg(Steel) 310kg(Aluminum)	520kg(Steel) 340kg(Aluminum)	520kg(Steel) 340kg(Aluminum)
Counter Weight	800kgs	900kgs	1000kgs	1200kgs
20GP Qty Of Package	10Sets	10Sets	9Sets	9Sets
*The weight of lifting part includes platform,hoist,safety locks and electric control system.

<<<
OSL Series Safety LockOverspeed (Centrifugal) type for all stirrups

<<<
LTD Series HoistHigh quality Die-casting aluminum casing

<<<
LSF Series Safety LockAnti-Tilt type for end stirrup platform

<<<
Electrical Control boxFirst class electrical components

<<<
Pin typeQuick and easy to assemble

<<<
Screw TypeSafe, reliable and convenient

It is designed particularly for heavy applications on facades, chimneys, silos, bridges etc.

The main para. Of ZLP1000 suspended platform:

QQ图片20160224141651 Rated Load: 1000kgs
Lifting Speed: 9m/min
Voltage-3Phase: 380V/ (415V/220V)
Frequency: 50Hz/60Hz
Power: 2.2kw×2
Hoist: LTD100
Safety Lock: LSF310
Dia. of Wire Rope: 4×31SW+FC-10.2mm
Platform Size: (2.5×3)×0.76×1.45m
Weight of Suspension Jibs: 340kg
QQ图片20160224141651 Weight of Lifting Part: Aluminum340kg/Steel 520kg
Counter Weight: 1200kg
20’ GPQty of Package: 8

Platform Suspension

The different variants are to be distinguished by their suspension principles. Three different stirrups allow to choose the platform the best to your requirements (type of work, type of building, maximum loads, number of persons).

<<<
End stirrup:Fitted at the ends of the platform.Advantages:The most economical and lightweight version, although showing extraordinary performances.

>>>
Frame stirrup:Slipped over the platform like a "frame".Advantages:The ends of the platform and therefor the building corners are clear and can be easily accessed, exchangeable with the upper part of the end stirrup.

<<<
"L" stirrup:Placed at the rear of the platform behind the workers.Advantages:The working surface is completely clear and the whole façade can be easily accessed.

Anchoring Options

The platform applies to all types of suspension which are manufactured according to the current standards and recommendations. The EN 1808 stipulates a safety factor of 3 for anchor points and suspension structures. Rigid offers a complete range of suspension structures which can be fitted on different types of roofs: the suspension jibs or the parapet clamp.


Light Parapet clamp	Parapet clamp	Normal suspension jibs

In most applications, it is possible to use a system of mobile suspension jibs in the roof for the attachment of temporary suspended platforms.

Double-Deck Platform

The ZLP platform can be easily transformed in a double-deck platform using especially designed attachment rods.

001
